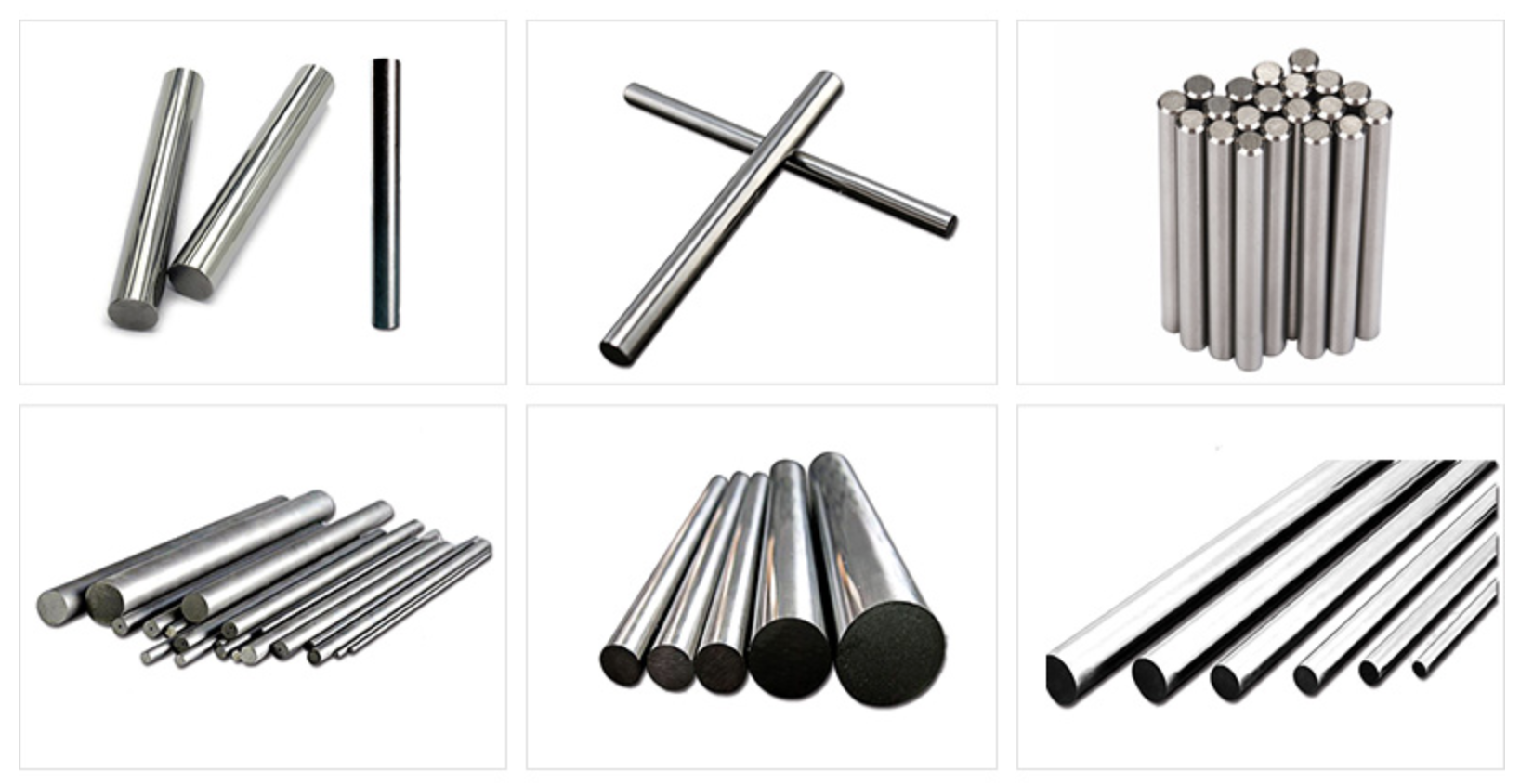

Cemented carbide rods can be used for making end mills, various drill bits, automobile special cutter, engine special cutters, horology, processing special cutters, integral vertical milling cutter, graver and etc. Also, the tungsten carbide rod can be made into hard alloy punches, mandrels, centers, and perforation tools.
1. Good wear resistance, higher toughness, high precision, better deformation and fracture resistance
2. Advanced automatic extrusion equipment to produce
3. HIP sintering and precision grinding to ensure have good performance
4. Both blank and finished conditions available
5. Can reach a mirror effect surface after accurate grinding and polishing
Solid Carbide Rods (Full length) | |||||
Nominal Dia | D(mm) | D(mm) | Length | Remarks | |
D (mm) | Un-ground | h6 | mm | ||
0.5 | 0.7 | 0.5 | 310-330 | ||
0.8 | 1 | 0.8 | 310-330 | ||
1 | 1.2 | 1 | 310-330 | ||
1.5 | 1.7 | 1.5 | 310-330 | ||
1/16" | 1.5875 | 1.8 | 1.5875 | 12" -13" | inch size |
2 | 2.2 | 2 | 310-330 | ||
2.35 | 2.55 | 2.35 | 310-330 | ||
3/32" | 2.38 | 2.6 | 2.38 | 12" -13" | inch size |
2.5 | 2.7 | 2.5 | 310-330 | ||
3 | 3.2 | 3 | 310-330 | ||
1/8" | 3.175 | 3.4 | 3.175 | 12" -13" | inchi size |
3.5 | 3.7 | 3.5 | 310-330 | ||
5/32 | 3.968 | 4.2 | 3.968 | 12" -13" | inchi size |
4 | 4.2 | 4 | 310-330 | ||
4.5 | 4.5 | 310-330 | |||
3/16" | 4.7625 | 5 | 4.762 | 12" -13" | inch size |
5 | 5.2 | 5 | 310-330 | ||
5.5 | 5.7 | 5.5 | 310-330 | ||
6 | 6.2 | 6 | 310-330 | ||
1/4" | 6.35 | 6.6 | 6.35 | 12" -13" | inch size |
6.5 | 6.7 | 6.5 | 310-330 | ||
7 | 7.2 | 7 | 310-330 | ||
7.5 | 7.7 | 7.5 | 310-330 | ||
5/16" | 7.937 | 8.2 | 7.937 | 12" -13" | inch size |
8 | 8.2 | 8 | 310-330 | ||
8.5 | 8.7 | 8.5 | 310-330 | ||
9 | 9.2 | 9 | 310-330 | ||
9.5 | 9.7 | 9.5 | 310-330 | ||
3/8" | 9.525 | 9.7 | 9.525 | 12" -13" | inch size |
10 | 10.2 | 10 | 310-330 | ||
10.5 | 10.7 | 10.5 | 310-330 | ||
11 | 11.2 | 11 | 310-330 | ||
7/16" | 11.11 | 11.3 | 11.11 | 12" -13" | inch size |
11.5 | 11.7 | 11.5 | 310-330 | ||
12 | 12.2 | 12 | 310-330 | ||
12.5 | 12.7 | 12.5 | 310-330 | ||
1/2" | 12.7 | 12.9 | 12.7 | 12" -13" | inch size |
13 | 13.2 | 13 | 310-330 | ||
13.5 | 13.7 | 13.5 | 310-330 | ||
14 | 14.2 | 14 | 310-330 | ||
9/16" | 14.288 | 14.5 | 14.288 | 12" -13" | inch size |
14.5 | 14.7 | 14.5 | 310-330 | ||
15 | 15.2 | 15 | 310-330 | ||
15.5 | 15.7 | 15.5 | 310-330 | ||
5/8" | 15.875 | 16.1 | 15.875 | 12" -13" | inch size |
16 | 16.2 | 16 | 310-330 | ||
16.5 | 16.7 | 16.5 | 310-330 | ||
17 | 17.2 | 17 | 310-330 | ||
17.5 | 17.7 | 17.5 | 310-330 | ||
18 | 18.2 | 18 | 310-330 | ||
18.5 | 18.7 | 18.5 | 310-330 | ||
19 | 19.2 | 19 | 310-330 | ||
3/4" | 19.05 | 19.3 | 19.05 | 12" -13" | inch size |
19.5 | 19.7 | 19.5 | 310-330 | ||
20 | 20.2 | 20 | 310-330 | ||
20.5 | 20.7 | 20.5 | 310-330 | ||
21 | 21.2 | 21 | 310-330 | ||
21.5 | 21.7 | 21.5 | 310-330 | ||
22 | 22.2 | 22 | 310-330 | ||
22.5 | 22.7 | 22.5 | 310-330 | ||
23 | 23.2 | 23 | 310-330 | ||
23.5 | 23.7 | 23.5 | 310-330 | ||
24 | 24.2 | 24 | 310-330 | ||
24.5 | 24.7 | 24.5 | 310-330 | ||
25 | 25.2 | 25 | 310-330 | ||
1" | 25.4 | 25.7 | 25.4 | 12" -13" | inch size |
26 | 26.3 | 26 | 310-330 | ||
27 | 27.2 | 27 | 310-330 | ||
28 | 28.2 | 28 | 310-331 | ||
29 | 29.2 | 29 | 310-333 | ||
30 | 30.2 | 30 | 310-334 | ||
31 | 31.2 | 31 | 310-335 | ||
1-1/4" | 31.75 | 32 | 31.75 | 12" -13" | inch size |
32 | 32.2 | 32 | 310-336 | ||
33 | 33.2 | 33 | 310-337 | ||
34 | 34.2 | 34 | 310-338 | ||
35 | 35.2 | 35 | 310-339 | ||
36 | 36.2 | 36 | 310-340 | ||
37 | 37.2 | 37 | 310-341 | ||
38 | 38.2 | 38 | 310-342 | ||
1-1/2" | 38.1 | 38.4 | 38.1 | 12" -13" | inch size |
39 | 39.2 | 39 | 310-343 | ||
40 | 40.2 | 40 | 310-344 | ||
42 | 42.2 | 42 | 310-344 |
Grade Introduction to Carbide Rods | |||||||
Grade | Co % | WC grain size | HRA | HV | Density (g/cm³) | Bending strength(MPa) | Fracture toughness(MNm-3/2) |
KT10F | 6 | Submicron | 92.9 | 1840 | 14.8 | 3800 | 10 |
KT10UF | 6 | superfine | 93.8 | 2040 | 14.7 | 3200 | 9 |
KT10NF | 6 | nanometer | 94.5 | 2180 | 14.6 | 4000 | 9 |
KT10C | 7 | Fine | 90.7 | 1480 | 14.7 | 3800 | 12 |
KT11F | 8 | Submicron | 92.3 | 1720 | 14.6 | 4100 | 10 |
KT11UF | 8 | superfine | 93.5 | 1960 | 14.5 | 3000 | 9 |
KT12F | 9 | superfine | 93.5 | 1960 | 14.4 | 4500 | 10 |
KT12NF | 9 | nanometer | 94.2 | 2100 | 14.3 | 4800 | 9 |
KT15D | 9 | Submicron | 91.2 | 1520 | 14.4 | 4000 | 13 |
KT15F | 10 | Submicron | 92.0 | 1670 | 14.3 | 4000 | 11 |
KT20F | 10 | Submicron | 91.7 | 1620 | 14.4 | 4300 | 11 |
KT20D | 10 | Submicron | 92.0 | 1670 | 14.3 | 4500 | 11 |
KT25F | 12 | superfine | 92.4 | 1740 | 14.1 | 5100 | 10 |
KT25EF | 12 | superfine | 92.2 | 1700 | 14.1 | 4800 | 10 |
KT25D | 12 | superfine | 91.5 | 1570 | 14.2 | 4200 | 13 |
KT37NF | 15 | nanometer | 92.0 | 1670 | 13.8 | 4800 | 10 |
